Andere Maschinen

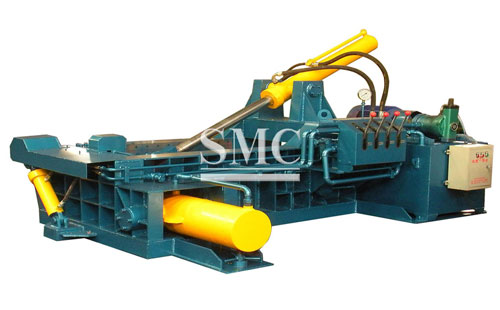

Hydraulische Schrott-Metallballenpresse

    Nennleistung: 7,5 kW



    Nenndrehzahl: 1440 U / min



    Leistungsspektrum: 3PH, 50 / 60Hz



    Rated Power: 7.5 kW


    Rated Speed: 1440 rpm


    Power Spec: 3PH, 50 / 60Hz

Produktbeschreibung
Hydraulische Schrott-Metallballenpresse hauptsächlich verwendbar für die Stahlwerke und die Wiederaufnahme- und Prozessindustrien, farbige und schwarze Metallschmelzindustrien. Sie kann alle Arten Metallrestmaterialien, Stahlschälarbeit, überschüssiges Kupfer und Abfallaluminium in qualifizierte Aufladung wie quadratische Säulen extrudieren, Zylinder, Achteck Körper und andere scharfe Gegenstände. der Zweck ist, die Kosten für den Transport und die Verhüttung zu reduzieren.

Eigenschaften:
1. Keine Installation erfordert, die Presse direkt bedienend
2. Mit Steuerplattform auf der Ballenpresse, bequem für den Betrieb
3. Drei Widder, die die Schrottmetalle drücken.
4. Automatischer Ballenauswerfer, der Ballen ist aus der Presskammer herausgedreht.
5. Mit Kühler und heißer (für spezielle Temperaturumgebung)
Hydrauliköl ist ISO 46
7. Das Schutzblech an der Presskammer ist aus S45C-Verschleißblech hergestellt.

Verpackung:
Folienverpackung oder Holzkiste einpacken

Lieferung:
20 Tage für 1 * 20GP Container

Garantie und Kundendienst:
Ein Jahr Garantie für die ganze Maschine
24 Stunden technischer Support per E-Mail
Anruf oder Tür-zu-Tür-Service
Bedienungsanleitung und detailliertes Video.

Product Description

Hydraulic Scrap Metal Baler mainly suitable for the steel works and the recovery and process industries ,colored and black metal smelt industries .It can extrude every kinds of metal leftover materials , steel paring, waste copper and waste aluminum into qualified charging such as square column, cylinder, octagon body and other sharps. The purpose is to reduce the costs of transportation and smelting.



Features:
1. No installation demands, operating the baler directly
2. With control platform on the baler, convenient for operating
3. Three rams pressing the scrap metals.
4. Automated bale ejector, the bale turned out from the pressing chamber.
5. With cooler and hotter ( For special temperature environment)
6. Hydraulic Oil is ISO 46

7. The guard plate on the pressing chamber is made of S45C wear plate.



Packaging: Wrap film packaging or wooden case



Delivery: 20 days for 1*20GP container



Guarantee and after-sale service:
One year guarantee for whole machine
24 hours technical support by email
Calling or door-to-door service
User manual and detailed video.

Energiesystem (Motor)

Typ: Y132M-4

Nennleistung: 7,5 kW

Nenndrehzahl: 1440 U / min

Leistungsspektrum: 3PH, 50 / 60Hz

Systemparameter

Deckel Zyl. Kraft: 24 Ton

Seitendruck Zyl. Kraft: 50 Tonnen

Hauptdruck Zyl. Kraft: 63 Ton

Ballenentladung Zyl. Kraft: 8 Ton

Hydrauliksystemdruck: 25 MPa

Leerlaufzykluszeit: ca. 90 Sek

Hydrauliksystem (Pumpe)

Typ: 25YCY14-1B

Nennverdrängung: 5ml / r

Max Betriebsdruck: 31.5MPa

Betriebssystem

Manueller Ventilbetrieb

Standardkonfiguration

A3 Stahlzwischenlagen, Oberflächenwärmebehandlung.

Optionale Konfiguration

Schneideklingen & Zähne (2 Seiten);

Kühler / Heizung;

Diesel / Diesel Generator für Power.

Allgemeine Beschreibung

Hauptmaschinengröße (L × B × H): 2800 × 1900 × 1700 mm

Drücken Boxgröße (L × B × H): 1000 × 600 × 500 mm

Ballengröße (B × H): 190 × 190 mm

Ballengewicht (Stahl): 15-30 kg

Produktionsrate (Stahl): 0,4-0,8 Tonnen / Std

Versandgewicht: ca. 4 Tonnen

Laden (Standardcontainer): Eins

Hydrauliköl Marke

Öltankvolumen: 180 ltr

Hydrauliköl Marke

Power System (Motor)

Type: Y132M-4

Rated Power: 7.5 kW

Rated Speed: 1440 rpm

Power Spec: 3PH, 50/ 60Hz

System Parameters

Lid Cyl. Force: 24 Ton

Side Pressure Cyl. Force: 50 Ton

Main Pressure Cyl. Force: 63 Ton

Bale Discharge Cyl. Force: 8 Ton

Hydraulic System Pressure:  25 MPa

Idle Cycle Time:  Approx. 90 Sec

Hydraulic System (Pump)

Type: 25YCY14-1B

Rated Displacement: 5ml/r

Max Operating Pressure: 31.5MPa

Operation System

Manual Valve Operation

Standard Configuration

A3 Steel Liners, Surface Heat Treatment.

Optional Configuration

Cutting Blades & Teeth (2 sides);

Cooler / Heater;

Diesel / Diesel Generator for Power.

General Description

Main Machine Size (L×W×H): 2800×1900×1700 mm

Press Box Size (L×W×H): 1000×600×500 mm

Bale Size (W×H): 190×190 mm

Bale Weight (Steel): 15-30 kg

Production Rate (Steel): 0.4-0.8 ton/hr

Shipping Weight: Approx. 4 tons

Loading (Standard Containers): One

Hydraulic Oil Brand

Oil Tank Volume: 180 ltr

Hydraulic Oil Brand




Zeichnungsansicht

Drawing View
