Material: 0.03% or 0.08% sliver copper/bake lite CN6551



    Größe: Angepasst



    Struktur: Segmentierter / Haken / Nutkommutator







    Materials: 0.03% or 0.08% sliver copper/bake lite CN6551



    Size: Customized



    Structure: Segmented/ Hook/ Groove commutator

Produktbeschreibung:

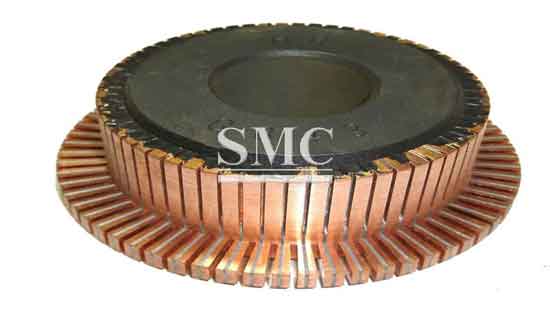

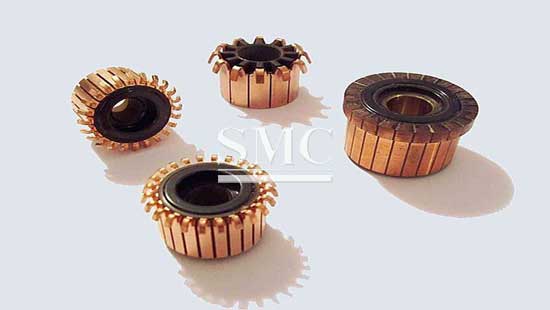

Kommutator-Reihenmotor ist ein Originalteile, die den Motor des DC-Dauermagneten weiter bewegen konnten. es ist eine Vielzahl von Kupferelementen, die untereinander isoliert und voneinander getrennt sind und mit Isolationsmaterial verstärkt sind. Jedes einzelne Kupferelement ist ein Stab, der an einem Ende über eine Verbindung in Form eines Hakens oder einer Nut mit dem Ende der Ankerwicklungsspule verbunden ist. Der elektrische Strom wird über zwei Kohlenstoff-Schleifkontakte auf den Kommutator übertragen - Bürsten, die durch eine Feder auf die Kommutatoroberfläche (Bürstenspur) Druck ausüben.


Product Description:

Commutator series motor is a original parts which could keep the motor of DC permanent magnet moving on . it is a multitude of copper elements insulated (spaced) among each other and reinforced with insulation compound .Each individual copper element is a bar joined on one end via connection in form of hook or groove with the end of the armature winding coil. Electric current is transferred to commutator through two slip carbon contacts – brushes exerting pressure onto the commutator surface (brush track) by force of a spring.



Technologie
Anwendung der State-of-Art Entwicklungswerkzeuge
Richtige Konstruktion und Herstellung von Werkzeugen und Maschinen
Analysen hinsichtlich möglicher Verbesserungen bei der Kollektormontage
Automatisierung und visuelle Inspektion


Technology
Application of the state-of-art development tools
Proper construction and production of tools and machines
Analyses as to potential improvements in commutator mounting
Automation and visual inspection




Test technischer Parameter:

Testing technical parameter:

Kommutatoranalyse Zeichnung:

Commutator analysis drawing:

Verpackung des Kommutators:

 Shanghai Metal Products wird gemäß den Vorschriften und Kundenwünschen verpackt und etikettiert. Es wird sorgfältig darauf geachtet, Schäden zu vermeiden, die während der Lagerung oder des Transports auftreten können. Zusätzlich sind klare Etiketten auf der Außenseite der Verpackungen markiert, um die I.D. und die Qualitätsinformationen des Produkts leicht zu identifizieren.

1)Shanghai Metal Standard

2)Customization




Packaging of Commutator:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization

Anwendung:

Für Hilfsmotoren

Für Kraftstoffpumpenmotoren

Für Anlasser

Für E-Motoren / Lichtmaschinen *

Für Haushaltsgeräte-Motoren

Für Industriemotoren

Für Elektrowerkzeugmotoren





Application:

For auxiliary motors

For fuel pump motors

For starter motors

For E-motors/Alternators*

For household appliance motors

For industrial motors

For power tool motors


Advantages

Complete solution (development, production & support services)

Long tradition and experience in re-forming of copper and injection molding

Established development and quality processes according to quality standards

In-house manufacture of tools and production equipment for the automation process

Sustained level of quality at all production locations worldwide

Reliable partner ensuring optimal relation between quality and price
